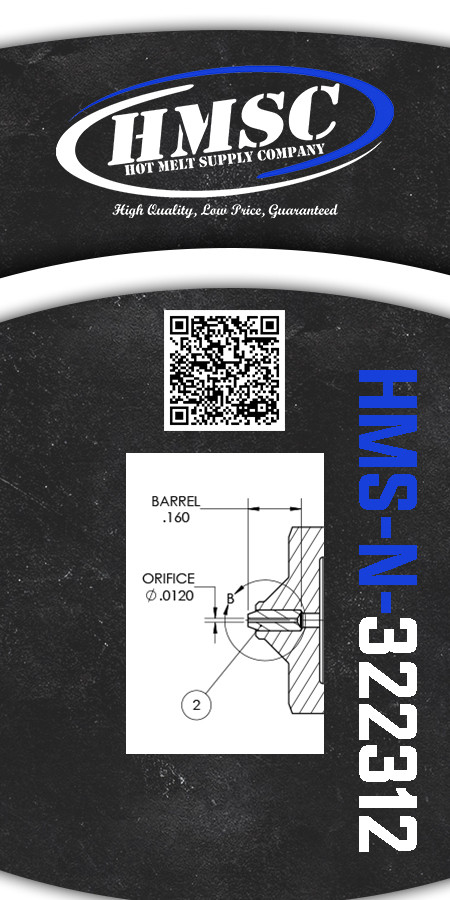

Replacement .012 Nozzle for Nordson® 322312

SKU T3B23A2S Replaces Nordson® 322312

HMSC pencil nozzle HMS-N-322312, replaces Nordson® 322312, .012 in orifice, .150 in engagement

Hot Melt Supply Company LLC

MSRP: $23.00
$22.00
(You save $1.00 )
Adding to cart… The item has been added
Download the spec sheetPDF
Need to confirm the fit or order by phone? 1-888-202-1788 Email sales

Specifications

Nozzle ID guide
Replaces Nordson®
322312
Also replaces
65010-612971XX403A237612A322312APNN8603B612CN1451H237612H322312NO20AM-612ZLA37C12ZLS22S12237612
Other brands
INFINITY NP-322312
Replaces Valco/Melton
971xx403
Replaces Graco InvisiPac
130055
Category
Single Orifice Pencil Nozzles.150 Engagement
Orifice Diameter
.012 in
Engagement Length
.150 in
Body Material
Brass
Insert Material
Stainless steel
Nozzle Type
Pencil
Pattern
Straight, single orifice
HMSC part number
HMS-N-322312
Specification Sheet
Download (PDF)
SKU
T3B23A2S
Weight
0.05 LBS
Shipping
Calculated at checkout

Hot Melt Supply is an independent company and is not affiliated with, endorsed by, or sponsored by Nordson Corporation or any other OEM. All products are manufactured by Hot Melt Supply unless otherwise noted. Any OEM names, part numbers, trademarks, or brands mentioned are for identification and reference purposes only and are used to indicate compatibility with non-OEM replacement parts.

Description

Replacement .012 Nozzle for Nordson® 322312

Direct replacement for OEM part number 322312. Precision-machined replacement nozzle for accurate bead placement and consistent adhesive application. Drop-in compatible for fast changeover with no modifications required.

Specifications: .012 Diameter, .150L Replacement .012 Nozzle for Nordson® 322312 Replacement Pencil Nozzles for Nordson® Standard Modules

Why Choose This Part:

  • Compatible replacement, drop-in fit, no modifications needed
  • Engineered to meet or exceed OEM performance standards
  • In-stock and ready to ship to minimize your downtime
  • Replaces OEM part numbers: Nordson® 322312, Valco/Melton® 971xx403

Catalog specifications

HMSC part numberHMS-N-322312
Replaces Nordson®322312
Also replaces237612
TypePencil
PatternStraight, single orifice
Orifice.012 in
Engagement length.150 in
Graco InvisiPac® equivalent130055
Valco equivalent971xx403

Straight pencil nozzle with a .012 in orifice and .150 in engagement (the length of the orifice bore inside the insert).

Phosphor brass body with a precision drilled stainless steel insert, orifice held to ±.0005 in. Every nozzle is hand probed and inspected, inserted and crimped, inspected for straightness, and marked with the orifice size on the hex. Fits all H200 modules.

From the HMSC Hot Melt Field Guide. Nordson is a registered trademark of Nordson Corporation; part numbers are used for identification only.
