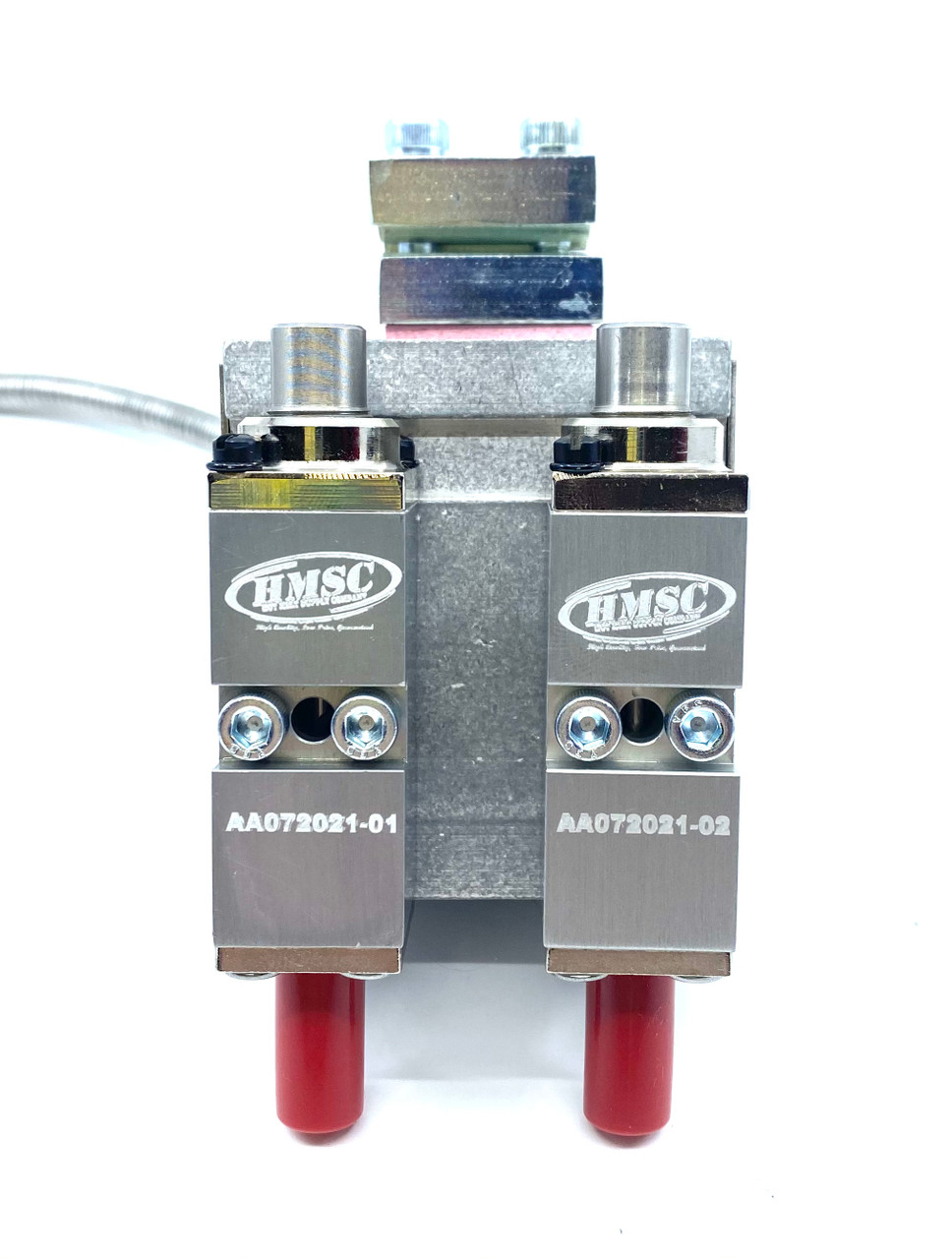

Replacement for Nordson® 8505264, Dual Module Hot Melt Gun

SKU T85P52H4S Replaces Nordson® 809558

1 review

H202 Style Dual Module Gun, direct replacement for Nordson 8505264 / 8504924. HMSC configured part number HMS-BC-212110000, configuration BCM-CBST-STD-02-A-IA-038-T-RB-XXXX-N0-3

Hot Melt Supply Company LLC

$1,478.00
Adding to cart… The item has been added
Download the spec sheetPDF
Need to confirm the fit or order by phone? 1-888-202-1788 Email sales

Specifications

Gun code guide
Replaces Nordson®
809558
Also replaces
8505264
Other brands
Category
H202 StyleDual Module
HMSC part number
HMS-BC-212110000
Configuration Code
BCM-CBST-STD-02-A-IA-038-T-RB-XXXX-N0-3 Read the code
Cordset
T, standard 6 pin
Also Built As
BCM-SLBS-STD-02-A-IA-038-T-RB-XXXX-N0-3
Family
H200
Modules
2
Air Supply
Independent Air
Module Type
Ball and Seat
Voltage
240 V
Solenoid
None
Specification Sheet
Download (PDF)
SKU
T85P52H4S
Weight
6.00 LBS
Shipping
Calculated at checkout

Hot Melt Supply is an independent company and is not affiliated with, endorsed by, or sponsored by Nordson Corporation or any other OEM. All products are manufactured by Hot Melt Supply unless otherwise noted. Any OEM names, part numbers, trademarks, or brands mentioned are for identification and reference purposes only and are used to indicate compatibility with non-OEM replacement parts.

Description

Replacement for Nordson® 8505264, Dual Module Hot Melt Gun

Direct replacement for OEM part number 809558. Direct-fit replacement module engineered for reliable adhesive dispensing. Tested to meet OEM flow and temperature specifications for seamless integration.

Specifications: H202-T, 1.50" Ctr, IA Replacement for Nordson® 8505264, Hot Melt Gun Replacement Applicators for Nordson® ClassicBlue® Style Guns, for 3000 series and Problue® machines Includes Modules and Solenoids

Why Choose This Part:

  • Compatible replacement, drop-in fit, no modifications needed
  • Engineered to meet or exceed OEM performance standards
  • In-stock and ready to ship to minimize your downtime
  • Replaces OEM part number: Nordson® 8505264

HMSC Preconfigured Gun

Preconfigured gun built by Hot Melt Supply Company to a released HMSC drawing, from stocked subassemblies. Direct replacement for Nordson® 8505264, 8504924.

HMSC part number: HMS-BC-212110000
Configuration code: BCM-CBST-STD-02-A-IA-038-T-RB-XXXX-N0-3

Also built as:

  • BCM-SLBS-STD-02-A-IA-038-T-RB-XXXX-N0-3 (Nordson 8504924)

Complete subassemblies (service parts):

  • Gun body: HMS-BC-202100000
  • Heater: HMS-HNA-34663
  • 2 x Standard AOSC module, ball and seat: T10F29B5S
  • Cordset T, standard 6 pin: T2K46M5S
  • Parts kit, multi module, independent air, short: HMS-0005-KIT-07
  • Side cover kit, multi module gun: HMS-0005-KIT-02

The cordset pinout is shown in the product images. Call 1-888-202-1788 for pricing and lead time.

Warranty

1 yr limited parts and labor warranty. No warranty on electronics or issues related to char or misuse.

Reviews (1)

Write a Review
  • 4

    2 NOZZLE GLUE HEAD

    Ordered for stock not a direct install, everything looks like brand N without the brand N prices.

    Posted by Jeff on 30th Oct 2024

!
