Replacement for Nordson® 809686, Hot Melt Gun

SKU HMS G-8504848 Replaces Nordson® 809686

Hot Melt Supply Company LLC

$1,361.00
Adding to cart… The item has been added
Download the spec sheetPDF
Need to confirm the fit or order by phone? 1-888-202-1788 Email sales

Specifications

Gun code guide
Replaces Nordson®
809686
Also replaces
8504848CG2044KNG9686PNG9686X809686ZLP09C86
Other brands
Category
H202 StyleDual Module
HMSC part number
HMS-BC-211410000
Configuration Code
BCM-CBST-STD-02-A-IA-022-T-RB-XXXX-N0-3 Read the code
Cordset
T, standard 6 pin
Family
H200
Modules
2
Air Supply
Independent Air
Module Type
Ball and Seat
Voltage
240 V
Solenoid
None
Specification Sheet
Download (PDF)
SKU
HMS G-8504848
Weight
8.00 LBS
Shipping
Calculated at checkout

Hot Melt Supply is an independent company and is not affiliated with, endorsed by, or sponsored by Nordson Corporation or any other OEM. All products are manufactured by Hot Melt Supply unless otherwise noted. Any OEM names, part numbers, trademarks, or brands mentioned are for identification and reference purposes only and are used to indicate compatibility with non-OEM replacement parts.

Description

Replacement for Nordson® 809686, Hot Melt Gun

Direct replacement for OEM part number 809686. Compatible replacement gun assembly for hot melt adhesive dispensing. Designed for reliable, high-speed operation with consistent bead quality across production runs.

Specifications: H202-T, .88" Ctr, IA Replacement for Nordson® 809686, Hot Melt Gun Replacement Applicators for Nordson® ClassicBlue® Style Guns, for 3000 series and Problue® machines.  Includes Solenoids and Modules.

Why Choose This Part:

  • Compatible replacement, drop-in fit, no modifications needed
  • Engineered to meet or exceed OEM performance standards
  • In-stock and ready to ship to minimize your downtime
  • Replaces OEM part number: Nordson® 809686

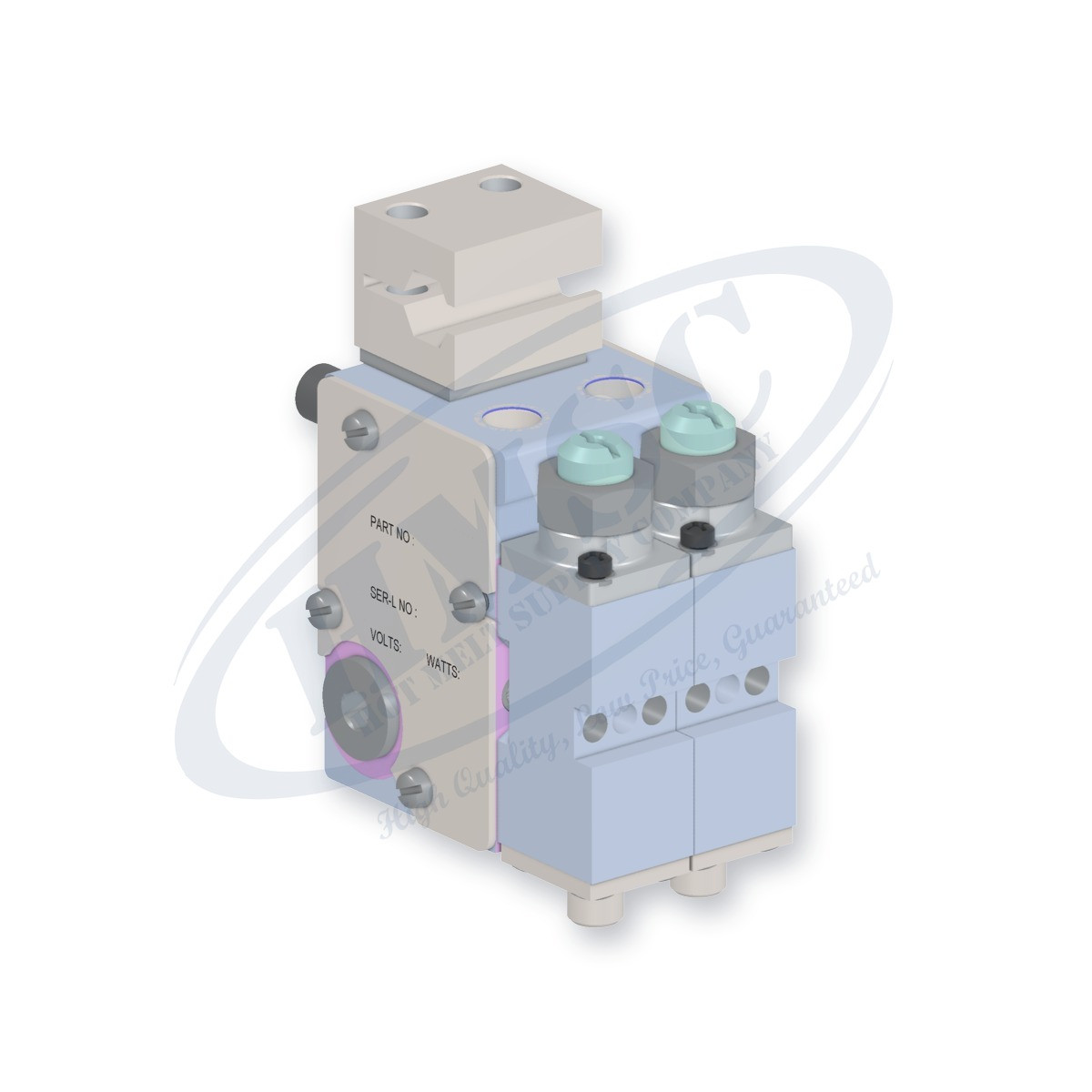

HMSC Preconfigured Gun

Preconfigured gun built by Hot Melt Supply Company to a released HMSC drawing, from stocked subassemblies. Direct replacement for Nordson® 8504848.

HMSC part number: HMS-BC-211410000
Configuration code: BCM-CBST-STD-02-A-IA-022-T-RB-XXXX-N0-3

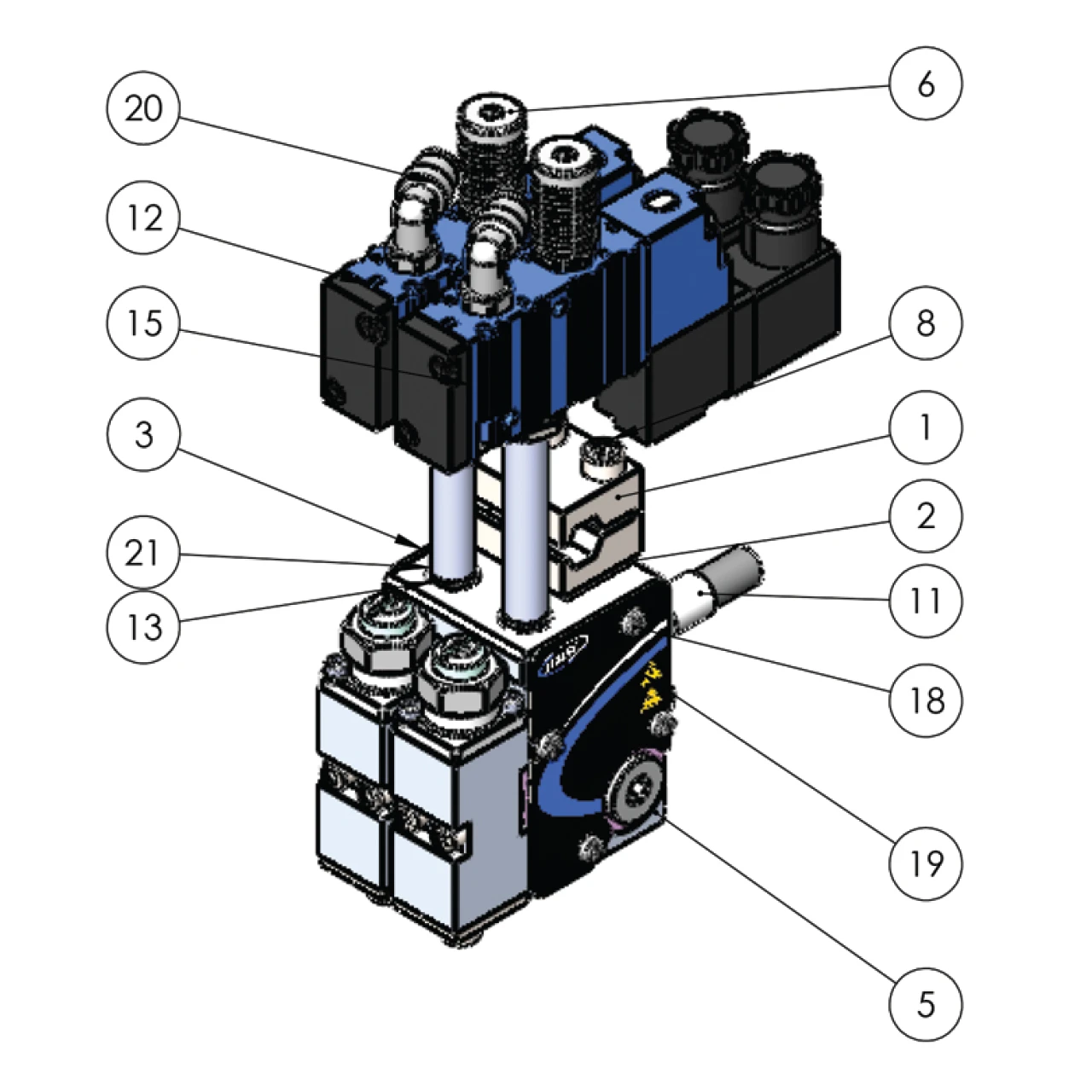

Complete subassemblies (service parts):

  • Gun body: HMS-BC-201400000
  • Heater: HMS-HNA-34662
  • 2 x Standard AOSC module, ball and seat: T10F29B5S
  • Cordset T, standard 6 pin: T2K46M5S
  • Parts kit, multi module, independent air, short: HMS-0005-KIT-07
  • Side cover kit, multi module gun: HMS-0005-KIT-02

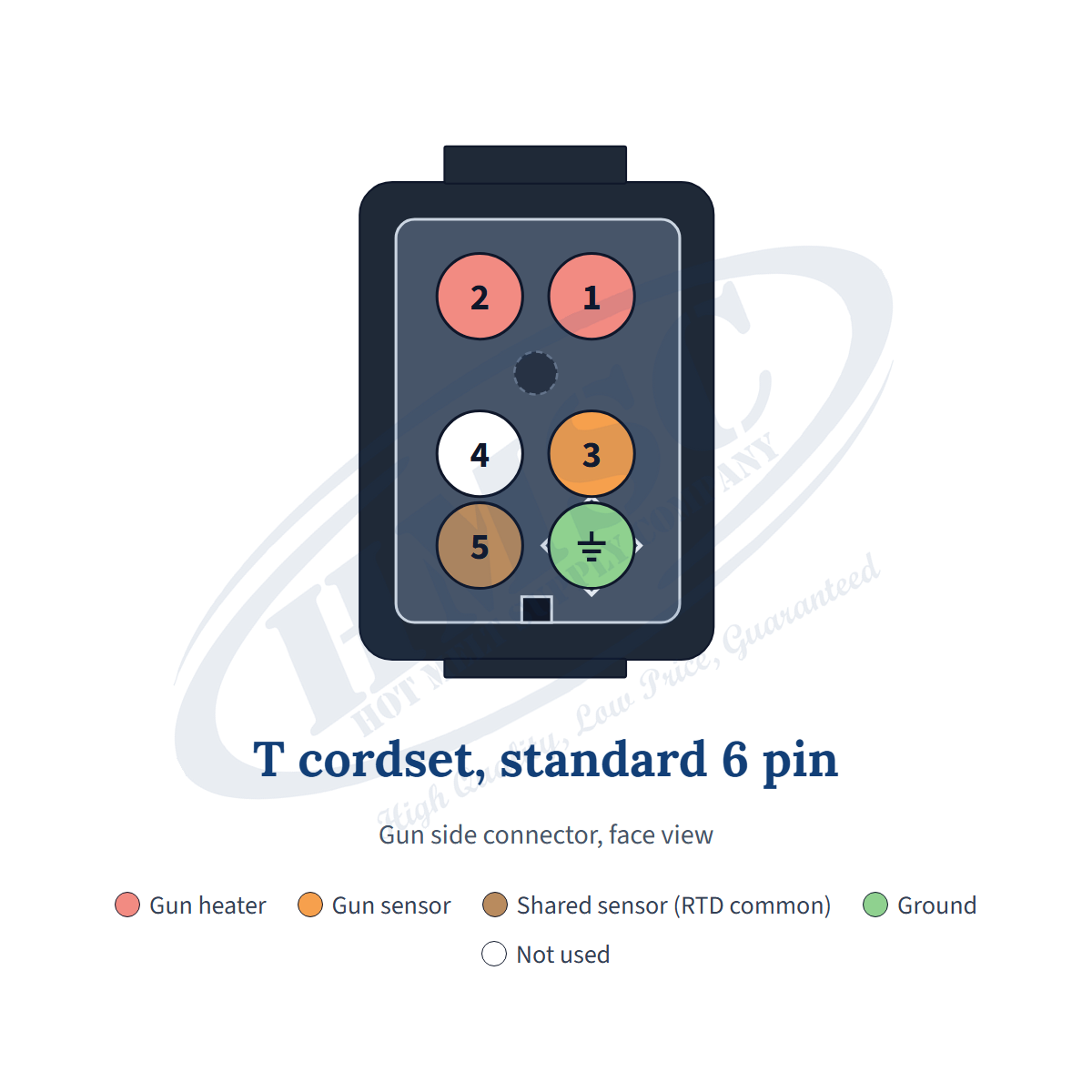

The cordset pinout is shown in the product images. Call 1-888-202-1788 for pricing and lead time.

Warranty

1 yr limited parts and labor warranty. No warranty on electronics or issues related to char or misuse.
