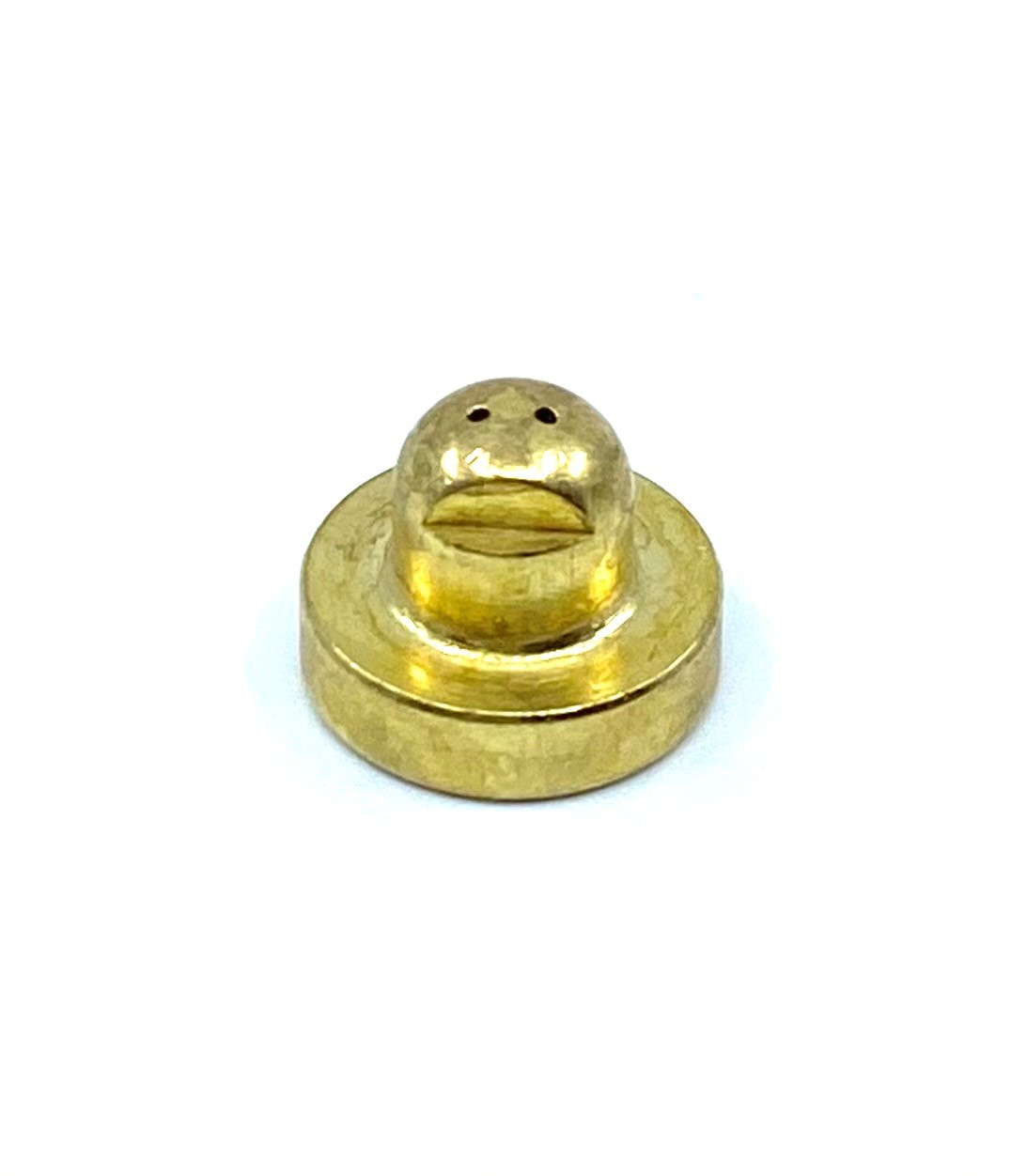

Replacement .020 Nozzle for Nordson® 238055

SKU T2C80F5S Replaces Nordson® 238055

Spray pattern of HMSC button nozzle HMS-N-238055: Dual 15°, 2 orifices, 15 degrees apart

Hot Melt Supply Company LLC

$31.00
Adding to cart… The item has been added
Download the spec sheetPDF
Need to confirm the fit or order by phone? 1-888-202-1788 Email sales

Specifications

Nozzle ID guide
Replaces Nordson®
238055
Also replaces
972XX107A238-055APNN52012CN2009H238055LB2120MLBS120NPM2012ZLA38F55
Other brands
INFINITY NP-238055
Replaces Valco/Melton
972xx107
Replaces Graco InvisiPac
130510
Category
Mini Button NozzlesDual Orifice Line Pattern Nozzles
Orifice Diameter
.020 in
Nozzle Type
Button
Pattern
Dual 15°
HMSC part number
HMS-N-238055
Specification Sheet
Download (PDF)
SKU
T2C80F5S
Weight
0.05 LBS
Shipping
Calculated at checkout

Hot Melt Supply is an independent company and is not affiliated with, endorsed by, or sponsored by Nordson Corporation or any other OEM. All products are manufactured by Hot Melt Supply unless otherwise noted. Any OEM names, part numbers, trademarks, or brands mentioned are for identification and reference purposes only and are used to indicate compatibility with non-OEM replacement parts.

Description

Replacement .020 Nozzle for Nordson® 238055

Direct replacement for OEM part number 238055. Precision-machined replacement nozzle for accurate bead placement and consistent adhesive application. Drop-in compatible for fast changeover with no modifications required.

Specifications: .020 Diameter, 15Deg Replacement .020 Nozzle for Nordson® 238055 Replacement Nozzles for Nordson® H20 and E700 Module Mini-Button Nozzles

Why Choose This Part:

  • Compatible replacement, drop-in fit, no modifications needed
  • Engineered to meet or exceed OEM performance standards
  • In-stock and ready to ship to minimize your downtime
  • Replaces OEM part numbers: Nordson® 238055, Valco/Melton® 972xx107

Catalog specifications

HMSC part numberHMS-N-238055
Replaces Nordson®238055
TypeButton
PatternDual 15°
Orifice.020 in
Graco InvisiPac® equivalent130510
Valco equivalent972xx107

Where the beads land

Product distance from the tip0.5 in1 in2 in3 in
7.5° from center0.08 in0.14 in0.28 in0.41 in

Offset of each bead from the nozzle centerline.

Domed button nozzle. 2 orifices, 15 degrees apart.

One piece phosphor brass with precision drilled orifices held to ±.0005 in. Fits all H200 modules.

From the HMSC Hot Melt Field Guide. Nordson is a registered trademark of Nordson Corporation; part numbers are used for identification only.
